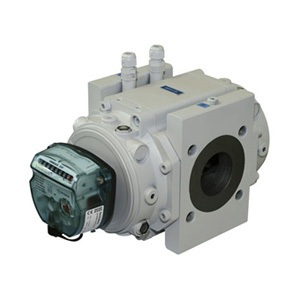

瓦斯轉子表
型號: G16-G400
描述: Rotary Meter DELTA
立即詢問
產品規格
|
Model no. |
最大流量 |
最大使用壓力 |
管徑(DN) |
法蘭到法蘭 |
變化幅度 |
初始流量 |
壓力損失 |
出入口牙規 |
尺寸 |
重量 |
原產地 |
|
|
Qmax(m³/h) |
Pmax |
(flange to flange) |
(Rangeability) |
Startung flow |
Pressure loss |
Flanging |
Measurement |
Weight(kg) |
Origin |
|
|
|
|
|
|
|
|
(dm³/h) |
∆pr (mbar) |
|
(H/W/D)(mm) |
|
|
|
G16 |
25 |
16bar |
50 |
171 |
20 to 50 |
50 |
0.13 |
PN 10/16, |
217 x 341 x 171 |
11 |
|
|
G25 |
40 |
50 |
171 |
20 to 100 |
50 |
0.33 |
11 |
|
|||
|
G40 |
65 |
50 |
171 |
20 to 160 |
50 |
0.88 |
11 |
|
|||
|
G65 |
100 |
50 |
171 |
20 to 200 |
50 |
2.08 |
11 |
|
|||
|
100 |
80 |
171 |
20 to 200 |
70 |
0.69 |
PN20 and |
217 x 417 x 171 |
15 |
德國 |
||
|
G100 |
160 |
(option |
50 |
171 |
20 to 200 |
70 |
3.25 |
ANSI125- |
15 |
Germany |
|
|
160 |
19.3bar) |
80 |
171 |
20 to 200 |
70 |
1.73 |
ANSI150 |
15 |
|
||
|
G160 |
250 |
80 |
171 |
20 to 200 |
80 |
3.15 |
217 x 465 x 171 |
17 |
|
||
|
250 |
80 |
241 |
20 to 160 |
150 |
2.73 |
280 x 439 x 241 |
29 |
|
|||
|
300 |
100 |
241 |
20 to 160 |
175 |
2.1 |
280 x 508 x 241 |
34 |
|
|||
|
G250 |
400 |
80 |
241 |
20 to 100 |
175 |
4.4 |
280 x 508 x 241 |
34 |
|
||
|
400 |
|
100 |
241 |
20 to 100 |
175 |
3.2 |
|
280 x 508 x 241 |
34 |
|
|
|
|
400 |
100 |
241 |
20 to 160 |
200 |
2.63 |
|
280 x 645 x 241 |
43 |
|
|
|
G400 |
650 |
|
100 |
241 |
20 to 160 |
200 |
4.9 |
|
280 x 645 x 241 |
43 |
|
