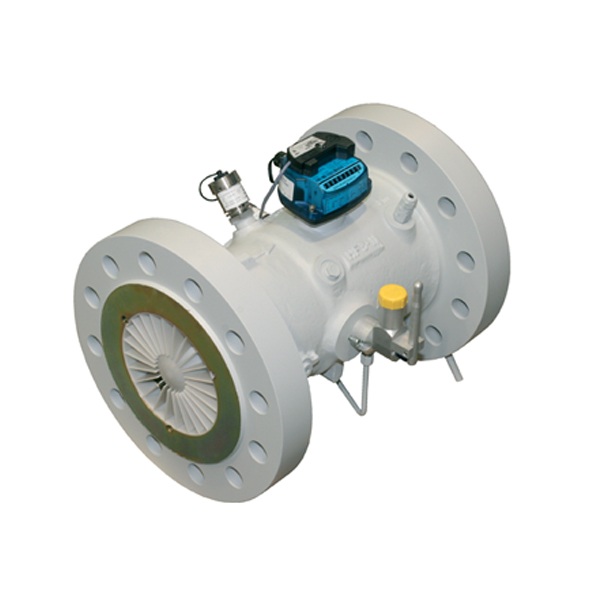

瓦斯渦輪表
型號: G65-G6500
描述: Turbine Gas Meter. Brand: Itron
立即詢問
產品規格
|
型號 |
最大流量 |
管徑(DN) |
變化幅度 |
1 lmp LF |
出入口牙規 |
Freq LF |
RPM |
壓力損失 |
尺寸 |
原產地 |
|
Model |
Qmax(m³/h) |
|
(Rangeability) |
& cyble |
Flanging |
Qmax |
Qmax |
Pressure loss |
Measurement |
Origin |
|
|
|
|
|
(m³/lmp) |
|
(HZ) |
(Rot/min) |
∆pr (mbar) |
(H/W/D)(mm) |
|
|
G65 |
100 |
50 |
10 |
0.1 |
|
0.28 |
15999 |
9.1 |
252 x 275 x 150 |
|
|
G100 |
160 |
80 |
20 |
1 |
|
0.04 |
5853 |
2.4 |
293 x 320 x 240 |
|
|
G160 |
250 |
80 |
20 or 30 |
1 |
0.07 |
9146 |
5.9 |
293 x 320 x 240 |
|
|
|
250 |
100 |
20 |
1 |
0.07 |
4153 |
2.2 |
326 x 355 x 300 |
|
||
|
G250 |
400 |
80 |
20 or 30 |
1 |
|
0.11 |
8634 |
12.8 |
293 x 320 x 240 |
|
|
400 |
100 |
20 or 30 |
1 |
|
0.11 |
6644 |
5.4 |
326 x 355 x 300 |
德國 |
|
|
G400 |
650 |
100 |
20 or 30 |
1 |
PN110 |
0.18 |
6371 |
11.8 |
326 x 355 x 300 |
Germany |
|
650 |
150 |
20 |
1 |
PN10/ |
0.18 |
3521 |
2.7 |
385 x 420 x 450 |
|
|
|
G650 |
1000 |
150 |
20 or 30 |
1 |
- |
0.28 |
5417 |
6.6 |
385 x 420 x 450 |
|
|
1000 |
200 |
20 |
10 |
ANSI150/ |
0.03 |
2213 |
1.6 |
436 x 475 x 600 |
|
|
|
G1000 |
1600 |
150 |
20 or 30 |
1 |
ANSI600 |
0.44 |
5114 |
13.8 |
385 x 420 x 450 |
|
|
1600 |
200 |
20 or 30 |
10 |
|
0.04 |
3540 |
4 |
436 x 475 x 600 |
|
|
|
G1600 |
2500 |
200 |
20 or 30 |
10 |
|
0.07 |
3264 |
8.7 |
436 x 475 x 600 |
|
|
|
2500 |
300 |
20 |
10 |
|
0.07 |
1735 |
5 |
550 x 600 x 900 |
|
|
G2500 |
4000 |
250 |
20 or 30 |
10 |
|
0.11 |
2832 |
11 |
527 x 575 x 750 |
|
|
|
4000 |
300 |
20 or 30 |
10 |
|
0.11 |
2776 |
5 |
550 x 600 x 900 |
|
|
|
4000 |
400 |
20 |
10 |
|
0.11 |
1163 |
1.8 |
646 x 705 x 1200 |
|
|
G4000 |
6500 |
300 |
20 or 30 |
10 |
|
0.18 |
2517 |
9.5 |
550 x 600 x 900 |
|
|
|
6500 |
400 |
20 or 30 |
10 |
|
0.18 |
1890 |
4.4 |
646 x 705 x 1200 |
|
|
|
6500 |
500 |
20 or 30 |
10 |
|
0.18 |
1890 |
4.4 |
710 x 775 x 1500 |
|
|
G6500 |
10000 |
400 |
20 or 30 |
10 |
|
0.28 |
1622 |
9.5 |
646 x 705 x 1200 |
|
|
|
10000 |
500 |
20 or 30 |
10 |
|
0.28 |
1622 |
9.5 |
710 x 775 x 1500 |
|
